Product description
The receiver units
Five different receivers are available to match the CORE:
PBR-9D
This is a nine-channel receiver with two redundant receiver circuits. The unit features a P²BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or as channel 10.

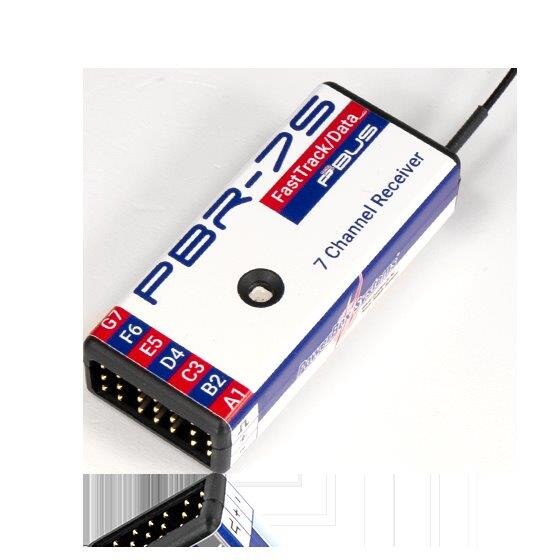

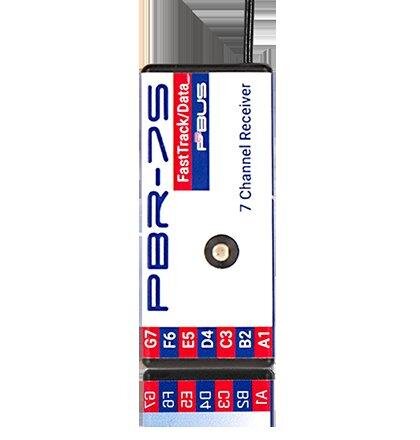

PBR-7S
This is a seven-channel receiver with a single receiver circuit. The unit features a P²BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or as channel 8.
PBR-5S
This is a five-channel receiver with a single receiver circuit. The unit features a P²BUS interface for servo and telemetry data, while its minuscule size makes it the natural choice for small models.
PBR-26D
This is a satellite receiver featuring two redundant receiver circuits. The unit features a P²BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or S-BUS. This unit is designed to be connected to our PowerBox power supply systems or a flybarless system.
PBR-8E
This is a eight-channel receiver with two redundant receiver circuits. The unit features 8 PWM servo outputs and telemetry data for battery voltage and RF-data.
With the exception of the PBR-5S and the PBR-8E all receivers have a FastTrack interface with which the iGyro SAT can be easily connected!
Features
• 7 Channel 2.4GHz Receiver
• Extreme interference rejection
• Ultra-long range
• Option of iGyro SAT
• Integral telemetry / servo bus (P²BUS)
• High-performance real-time telemetry
• Reception quality and airborne battery voltage available via telemetry as standard
• Auxiliary output can be configured as Channel 8 or as serial interface (S.BUS or SRXL)
• Parameters for all functions can be set from the transmitter
Technical Data
Operating voltage 4.0V - 9.0V
Supported RC systems CORE
Channels 26
Servo sockets 7 (8)
Servo signal resolution 4096 Steps
Integral gyro system optional with iGyro SAT
Supported telemetry systems P²BUS
Dimensions 52 x 22 x 12 mm
Weight 12g
Temperature range -30°C to +85°C
